Aluminum base alloy
Product Description
|
Chemical composition(%) |
|||||||||||||
|
Si |
Fe |
Cu |
Mn |
Mg |
Zn |
Other |
Al |
||||||
|
11.0- 13.0 |
≤ 0.80 |
≤ 0.30 |
≤ 0.15 |
≤ 0.10 |
≤ 0.20 |
Single 0.05 |
Total 0.15 |
bal. |
|||||
|
Mechanical properties of the weld metal |
|||||||||||||
|
Melting temperature |
Conductivity |
Density |
Thensile strength |
Yield strength |
Elongation |
||||||||
|
532-571℃ |
40%IACS |
2.68g/mm2 |
130-160Mpa |
70-85Mpa |
6-12% |
||||||||
|
Properties And Usage |
|||||||||||||
|

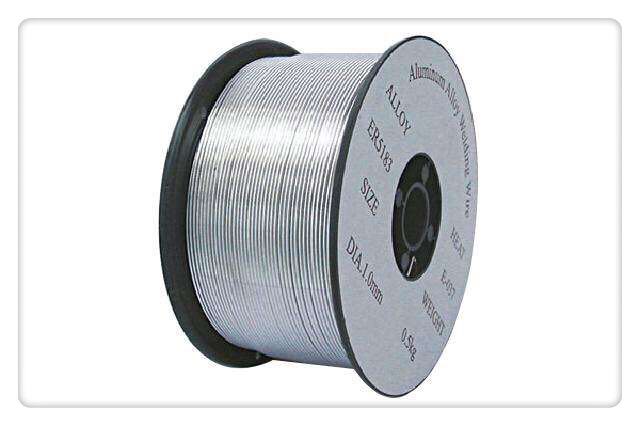

This product is an aluminum alloy welding wire containing 12% silicon, which is suitable for welding all kinds of cast and extruded aluminum alloys. Low melting point and good flowability make the welding deformation of base metal very small. It is used in welding or surfacing light aluminum alloy processing industry. |
|||||||||||||
